Automatic Filling and Sealing Machines

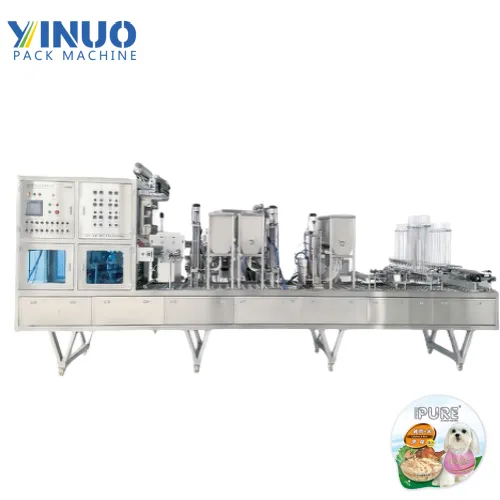

This fully automatic machine is specially designed for filling and sealing aluminum foil trays with pet meat paste, wet food, or canned pet meals. Ideal for dog and cat food manufacturers, the system ensures hygienic, efficient, and airtight packaging.
The machine supports automatic tray dispensing, accurate piston or screw-type filling for high-viscosity products, high-temperature foil sealing, and automatic tray discharge. Optional modules such as date coding, metal detection, CIP cleaning, and cartoning can be integrated.
Compatible with various aluminum tray sizes (customizable molds available)
Suitable for viscous materials like meat paste, fish puree, and wet pet food
High-temperature sealing ensures strong, leak-proof closures
Food-grade stainless steel construction (meets HACCP and CE standards)
Remote fault diagnosis and MES system integration supported
| Item | Specification |
| Model | YJN-ATFS60 (customizable) |
| Tray Type | Aluminum foil trays (various shapes and sizes supported) |
| Product Type | High-viscosity paste (e.g., meat paste, pâté, wet pet food) |
| Filling System | Servo-driven piston filler or screw pump (depending on material) |
| Filling Accuracy | ±1–2% (depending on product viscosity) |
| Filling Volume | 50–300g per tray (customizable) |
| Sealing Type | Heat sealing with pre-cut or roll-fed aluminum foil lids |
| Sealing Temperature | 180–250°C (adjustable) |
| Capacity | 30–60 trays/min (depending on tray size and filling volume) |
| Control System | PLC + HMI touchscreen (Siemens/Mitsubishi/Delta options) |
| Air Consumption | 0.6–0.8 MPa, 500–800 L/min |
| Power Supply | 220V/380V, 50/60Hz, 4.5–7.5kW |
| Material Contact Parts | SUS304 / SUS316L stainless steel |
| Machine Dimensions | Approx. 6200mm (L) × 1500mm (W) × 2100mm (H) |
| Net Weight | Approx. 3000kg (depending on configuration) |
Pet meat paste, wet dog/cat food, chicken/beef puree, pet pâté, fish mousse, canned pet meals
- Date coding (inkjet or thermal transfer)
- Nitrogen flushing
- Automatic tray feeding and collection
- CIP (Clean-in-Place) system
- Metal detector integration
