Automatic Filling and Sealing Machines

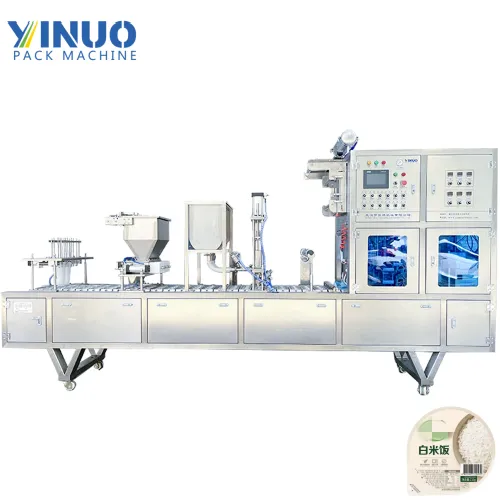

Yinuo Boxed Instant Rice Filling and Sealing Machine is specially designed for packaging ready-to-eat rice meals in plastic or aluminum trays. It integrates precise dosing, automatic tray denesting, rice filling, optional side dish loading, sealing, and cutting. Suitable for MAP (Modified Atmosphere Packaging) and vacuum sealing options, this system ensures long shelf life and food safety.
Fully automatic operation: tray loading, filling, sealing, cutting
Supports single or multi-compartment tray packaging
Hygienic design compliant with food safety standards
Compatible with hot filling and MAP technology
Customizable output: from 20 to 300 trays per minute
Easy integration with sterilizers, cooling tunnels, or case packers
| Specification | Details |
| Filling Range | 100–500g per tray (customizable) |
| Production Capacity | 20–60 trays/min (customizable) |
| Tray Type | Plastic, aluminum, or paper-based trays |
| Filling System | Volumetric or weighing system (optional multi-head scale) |
| Tray Size | Customizable (typical: 150×120mm to 230×180mm) |
| Sealing Type | Heat sealing with optional MAP (N₂/CO₂) |
| Film Material | PE, PET, PP, aluminum foil, laminated film |
| Control System | PLC with touchscreen (Siemens/Mitsubishi) |
| Air Supply | 0.6–0.8 MPa (clean and dry air) |
| Power Supply | AC 380V, 50/60Hz, 3-phase (customizable) |
| Total Power | Approx. 5–10 kW (depending on configuration) |
| Machine Dimensions | Approx. 4000×1000×1800 mm |
| Weight | Approx. 1600 kg |
| Material | SUS304 stainless steel, food-grade parts |
| Optional Features | MAP gas flushing, date coder, UV sterilizer, automatic tray denester, CIP cleaning, automatic lid placing |
Ideal for central kitchens, ready meal factories, airline catering services, frozen food manufacturers, and convenience food producers requiring efficient packaging of boxed rice meals.
Tray size and compartment layout
Filling system (volumetric, weighing, or multi-head)
Sealing method (standard, vacuum, MAP)
Output capacity and automation level
Integration with labeling, metal detection, and boxing systems
Support for OEM/ODM projects and special material handling
