Automatic Filling and Sealing Machines

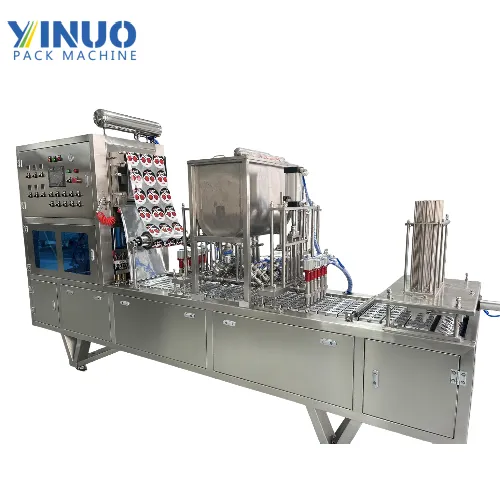

The Jelly Cup Packaging Machine is a fully automatic solution designed to efficiently fill and seal jelly desserts in pre-formed cups. It integrates automatic cup feeding, precise filling, heat sealing, and cup discharge into one streamlined process.
Made from food-grade stainless steel, this machine ensures hygienic operation, consistent portion control, and strong sealing quality. It supports a variety of cup sizes and sealing materials and can be customized with features such as date coding
Ideal for manufacturers aiming for high-speed, reliable, and sanitary jelly cup packaging.
Fully automatic cup feeding, filling, sealing, and discharge
High-precision filling for consistent portion control
Hygienic design with food-grade stainless steel construction
Supports various cup sizes and sealing materials
Integrated heat sealing ensures strong, leak-proof seals
| Item | Specification |
| Model | YJN-FSC10-100 |
| Filling Method | piston filling |
| Applicable Products | Jelly desserts, pudding, gelatin |
| Cup Type | Pre-formed plastic or paper cups |
| Cup Size Range | Customizable (e.g., 100–500 ml) |
| Production Speed | Up to 30–50 cups per minute |
| Sealing Method | Heat sealing with roll film or lids |
| Control System | PLC with touchscreen interface |
| Power Supply | AC 220V/380V, 50/60Hz |
| Air Pressure | ≥0.6 MPa |
| Machine Dimensions | Approx. 3500 × 1500 × 1800 mm |
| Machine Weight | Approx. 1500 kg |
| Material | SUS304 stainless steel |
Jelly and pudding manufacturers packaging pre-formed cups
Dessert production lines requiring hygienic, high-speed filling
Contract packaging companies handling jelly or gelatin products
Food factories producing portioned desserts for retail or catering
Facilities integrating automated packaging solutions for snacks and desserts
Supports various cup sizes and shapes
Adjustable filling volumes
Compatible with roll film or pre-cut lids
Multi-language touchscreen interface
Can integrate with other packaging equipment
