Automatic Filling and Sealing Machines

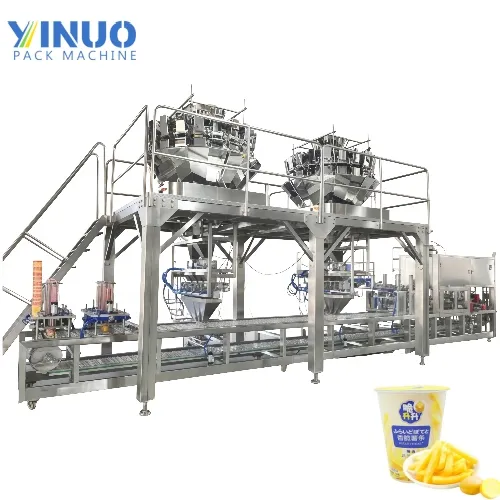

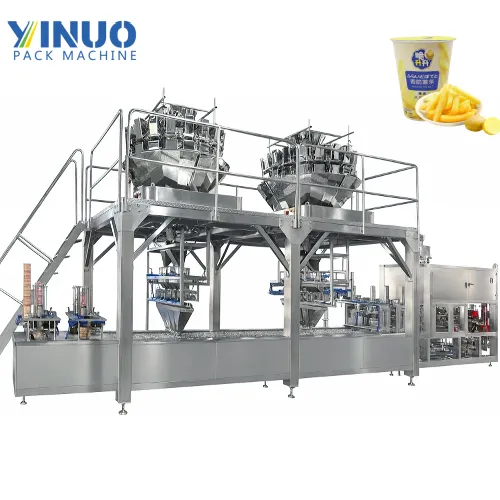

The Multihead Weigher French Fries Cup Filling and Sealing Machine is an advanced packaging solution designed for fast and accurate filling of fried snacks into pre-formed cups.
Equipped with a high-precision multihead weigher, this machine ensures consistent portion control and minimal product waste. The integrated system includes automatic cup dropping, multihead weighing, product filling, heat sealing, and cup discharge, all in one continuous process.
Constructed with food-grade stainless steel and a user-friendly PLC control system, it is ideal for high-efficiency snack food production lines.
Precise filling with multihead weigher
Automatic cup drop, fill, seal, and discharge
Supports various cup sizes
Hygienic stainless steel design
Easy operation via touch screen
Compact and efficient structure
| Item | Specification |
| Model | YJN-WFC8-110 |
| Filling Method | Multihead weigher |
| Applicable Products | French fries, potato sticks, snacks,chips |
| Cup Type | Pre-formed plastic or paper cups |
| Cup Size Range | Customizable (e.g. 100–500ml) |
| Production Speed | Up to 40–60 cups/min (depending on cup size) |
| Sealing Method | Heat sealing (film roll or pre-cut lids) |
| Control System | PLC with touch screen |
| Power Supply | AC 220V/380V, 50/60Hz |
| Air Consumption | ≥0.6 MPa, 300–500L/min |
| Machine Dimensions | Approx. 6200mm × 1800mm × 2100mm |
| Machine Weight | Approx. 1800–2200 kg |
| Material | SUS304 stainless steel |
Snack Food Factories – For efficient packaging of french fries, chips, and other fried snacks
Central Kitchens – For pre-packed snack portions in takeaway or combo meals
Food Packaging Lines – Integrated into fully automated production and packing systems
Contract Packaging Companies – For flexible, multi-size cup sealing projects
Frozen Food Manufacturers – For portioned frozen potato snacks in cups
Cup Size & Shape: Adaptable to various cup diameters, heights, and materials (plastic or paper)
Filling Range: Adjustable according to portion weight or volume
Mold Design: Custom molds for different tray or cup formats
Sealing Options: Compatible with roll film or pre-cut lids
Additional Functions: Optional nitrogen flushing, date printing, UV sterilization
Multi-language Interface: Touch screen available in your preferred language
Integration Ready: Can be linked with upstream weighing or downstream packing systems
