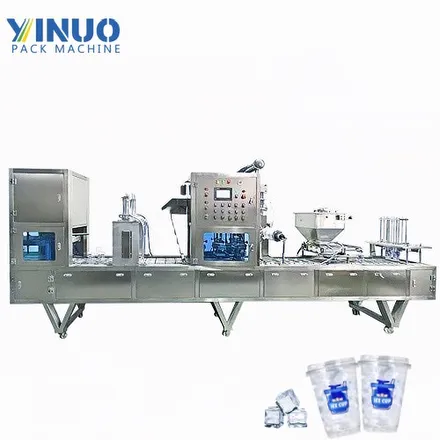

The 2-Lane Ice Cup Filling, Sealing, and Capping Packaging Machine is an advanced automation solution designed for the dairy, beverage, and dessert industries. Integrating filling, sealing, and capping in one system, it ensures precise filling, strong sealing, and reliable capping to enhance overall packaging quality. Built with food-grade stainless steel and equipped with a PLC intelligent control system, it offers high efficiency and hygiene, with an optional CIP cleaning system. This machine is ideal for packaging yogurt, juice, ice cream, pudding, jelly, and other liquid or semi-liquid food products.
Dual-Lane Operation – Higher output and efficiency compared to single-lane machines
Precise Filling – Accurate volumetric filling ensures product consistency
Secure Sealing & Capping – Leak-proof sealing with automatic capping system
PLC Control System – User-friendly interface and intelligent automation
Hygienic Design – Food-grade stainless steel contact parts with optional CIP cleaning system
Versatility – Suitable for yogurt, ice cream, juice, desserts, and semi-liquid foods
Compact & Durable – Space-saving structure with stable performance
| Item | Specification |
| Filling Lanes | 2 lanes |
| Filling Range | 50–300 ml (customizable) |
| Production Capacity | 1500-1800 cups/hour (depending on cup size & product) |
| Cup Diameter | 75–95 mm (customizable for different cup types) |
| Sealing Type | Film sealing + capping (aluminum foil / plastic film) |
| Material | Food-grade SUS304 stainless steel |
| Control System | PLC with touch screen interface |
| Power Supply | 220V/380V, 50/60Hz |
| Air Supply | 0.6–0.8 MPa, 0.4 m³/min |
| Optional | date coding, UV sterilization |
Filling Range: Adjustable according to product volume (small cups to large containers)
Cup Types & Sizes: Compatible with different shapes and diameters
Sealing Options: Film sealing, foil sealing, or capping combinations
Production Lanes: Flexible configuration (2, 4, 6, or more lanes)
Automation Features: CIP cleaning system, date coding, UV sterilization, nitrogen flushing
Material Compatibility: Suitable for dairy, beverages, sauces, condiments, and semi-liquid foods
