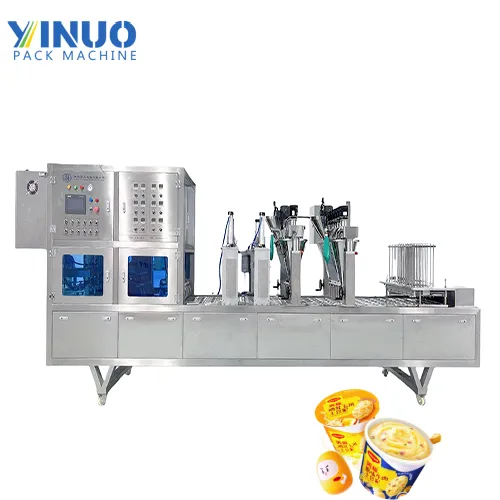

This automatic cup filling and sealing machine is designed for packaging instant mashed potato, powdered soups, protein powders, and similar dry food products. The system supports accurate powder dosing, film sealing, and optional date printing. It ensures hygienic, efficient, and consistent cup packaging for ready-to-eat and convenience food applications.
High-precision auger or cup-type dosing system
Automatic cup dropping, filling, sealing, and discharge
Supports pre-cut lids or roll film sealing
Optional nitrogen flushing and date coding
Built with food-grade stainless steel (SUS304/SUS316)
| Parameter | Details |
| Filling Product | Instant mashed potato, powdered soup, seasoning, etc. |
| Filling Volume Range | 30–500g (adjustable) |
| Cup Size Range | Customizable per customer sample |
| Output Capacity | Up to 1800 cups/hour (depending on product and cup size) |
| Filling Accuracy | ±1–2% |
| Power Supply | 380V, 50Hz, 3-phase (customizable) |
| Air Requirement | ≥ 0.6 MPa / 0.3 m³/min |
| Machine Frame | SUS304 / optional SUS316 for contact parts |
| Control System | PLC + HMI touchscreen interface |
| Dimensions (L×W×H) | Approx. 4500 × 1500 × 1900 mm |
| Net Weight | Approx. 2000 kg |
Instant mashed potato cups
Seasoning powder, bouillon, soup powder
Protein powder / nutritional powder
Ready-to-eat or instant meal cups
Dosing system type: auger, volumetric, or servo
Cup size & shape customization
Sealing system: roll film or die-cut lids
Integration with nitrogen flushing or multi-head weigher
Compatible with downstream packing systems
