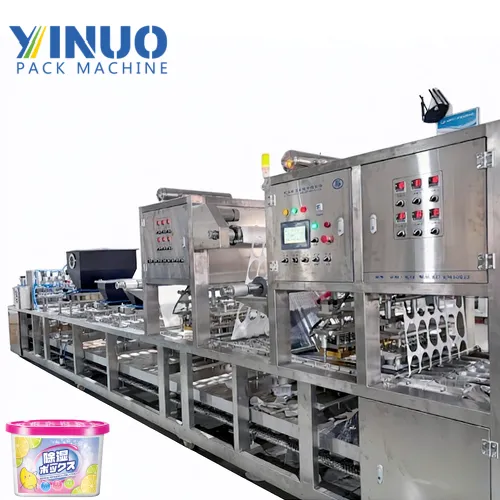

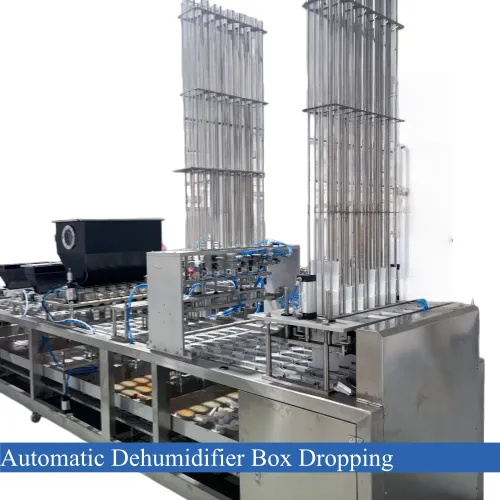

The Dehumidifier Box Filling Sealing and Capping Machine is designed for automatic packaging of moisture absorber products such as calcium chloride dehumidifier boxes. The system integrates automatic filling, sealing and capping into one efficient production line.
The machine is capable of accurately filling moisture absorbing materials into plastic boxes and completing the sealing and capping process automatically. It ensures stable performance, high production efficiency and hygienic packaging.

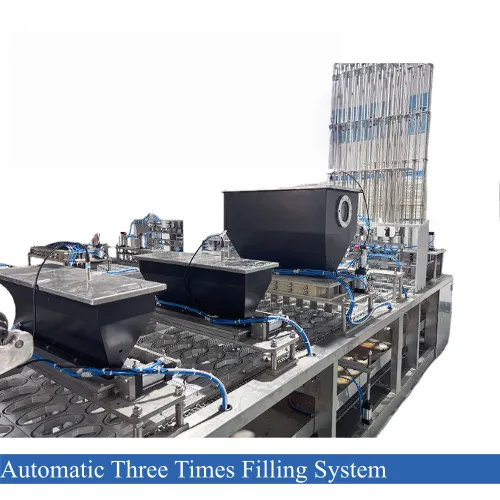

• Automatic Filling System
Ensures accurate dosing of calcium chloride or other moisture absorbing materials.
• Stable Sealing Technology
Reliable sealing system prevents leakage and ensures product integrity.
• Automatic Capping System
Automatically places and tightens caps to complete packaging.
• High Efficiency Production
Designed for continuous industrial production.
| Item | Description |
| Model | Anti-corrosive aluminum alloy and the transmission chain is made of stainless steel |
| Material | High-quality 304 stainless steel |
| Calcium chloride Filling volume | 100~500g |
| Activated carbon Filling volume | 3-10g |
| Fragrant bead Filling volume | 2-5g |
| Filling accuracy | 99% |
| Product capacity | 6 Lines about 4500 boxes/H4 Lines about 3000 boxes/H |
| Air consumption | 2 m³/minute |
| Working pressure | 0.6~0.8 Mpa |
| Motor power | 380V 50Hz, three phase |
| Heat sealing temperature | Temperature 0-400 degree |
| Overall dimension(mm) | 8000mm*1100mm*2030mm |
| Machine weight(kg) | 2800kg |
The machine is suitable for packaging various humidity control products, including:

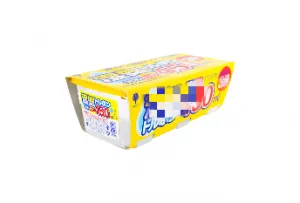

Household dehumidifier boxes
Calcium chloride moisture absorbers
Closet moisture absorber boxes
Bathroom moisture control products
Industrial humidity absorbers
The Dehumidifier Box Filling Sealing and Capping Machine can be customized according to different packaging requirements:
• Box size and shape customization
• Filling capacity adjustment
• Production speed configuration
• Sealing type options
• Capping system customization
• Integration with automatic production lines
