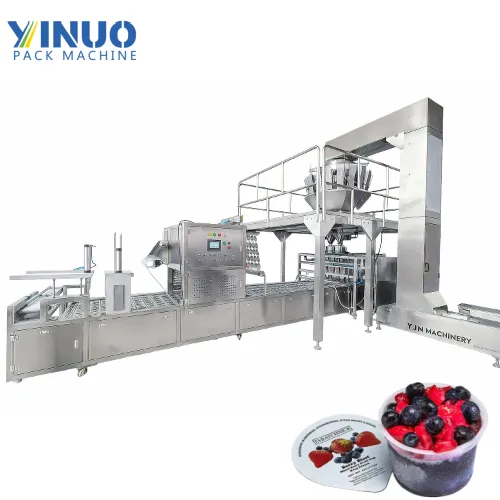

The IQF Frozen Fruit and Ice Cube Cup Filling and Sealing Machine is a fully automatic linear-type packaging system specially designed for filling and sealing cups containing frozen fruits, diced fruits, ice cubes, and dessert ingredients.
Equipped with a multihead weigher, it provides precise portioning for irregular or solid materials such as IQF fruit cubes, jelly pieces, or toppings, ensuring high accuracy and minimal product waste.
This machine is widely used in the production of frozen fruit cups, dessert cups, jelly, pudding, and ready-to-eat snacks.
Its servo-controlled filling system guarantees smooth and efficient operation, while the CIP automatic cleaning system ensures hygiene and easy maintenance.
Ⅰ.Multihead Weigher System
– Ensures precise dosing of IQF fruits, ice cubes, jelly pieces, or other solid ingredients with minimal product loss.
– High-speed, high-accuracy weighing suitable for irregular materials.
Ⅱ.Linear Cup Filling & Sealing Design
– Flexible linear layout allows easy mold change and multiple filling stations.
– Compatible with various cup materials: plastic, PET, or paper cups.
Ⅲ.Hygienic and Durable Construction
– Made of SUS304 / 316L stainless steel, meeting CE & ISO standards.
– Easy to maintain and suitable for frozen or chilled production environments.
Ⅳ.Integration Capability
– Can be linked with automatic labeling, capping, cartoning, and case packing lines for a complete solution.
| Item | Description |
| Model | YJN-GF-6 |
| Filling volume | 20G-500G |
| Product capacity | Max 12000 cups / hour（Depends on filling volume） |
| Air consumption | 1.5 Nm³/minute |
| Working pressure | 0.6~0.8Mpa |
| Main machine power | 380V 50Hz 3 Phases |
| Overall dimension(mm) | 4360mm*4000mm*4000mm |
| Machine weight(kg) | 4000kg |
IQF Frozen Fruits – diced mango, strawberry, blueberry, pineapple, peach, etc.
Fruit Dessert Cups – fruit + syrup, fruit + jelly, or fruit + yogurt combinations.
Ice Cube Cups – transparent PET cups filled with ice or flavored cubes.
Pudding & Jelly Cups – sweet desserts, fruit-flavored jelly, or pudding bases.
Fruit Puree & Smoothie Bases – single or multi-layer fruit purées.
Oatmeal & Cereal Cups – pre-portioned ready-to-eat breakfast cups.
Congee & Rice Porridge – hot-fill or ready-to-heat meal cups.
Custom molds available for different cup shapes and sizes, including round, square, oval, or special-shaped containers.
Compatible with plastic (PP, PET, PS), paper, or aluminum foil cups.
Adaptable for various filling materials, such as IQF fruits, ice cubes, nuts, jelly pieces, puddings, sauces, or liquids.
Filling system design and nozzle type are customized based on the viscosity, particle size, and flow rate of your product.
Machine speed and filling range can be adjusted to achieve your target production output.
Available options: 2,000–10,000 cups/hour, depending on cup size and material type.
