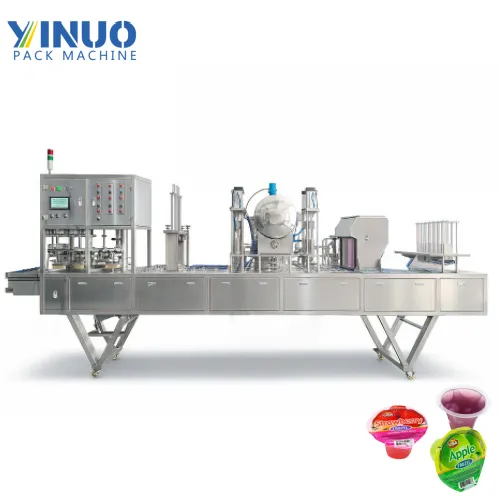

The Automatic Jelly Filling and Sealing Machine is a fully automated packaging solution designed for filling and sealing jelly, pudding, juice, and other semi-liquid desserts into plastic or paper cups.
It integrates cup loading, filling, sealing, date printing, and finished product discharge in one streamlined process.
Built with high-quality SUS304/316 stainless steel and advanced PLC control system, it ensures hygienic production, precise dosing, and stable performance under continuous operation.
This machine is ideal for modern food factories looking to achieve high-speed, efficient, and reliable jelly packaging with consistent product quality and minimal labor cost.
Fully Automatic Operation – Includes automatic cup feeding, filling, film placing, sealing, and discharge.
Accurate Dosing System – Servo-driven piston or pump ensures precise filling for jelly, pudding, or juice.
Multi-Material Compatibility – Works with plastic, paper, or aluminum foil cups and lids.
Hygienic Design – Food-grade stainless steel frame with optional CIP cleaning and UV sterilization.
High-Speed Sealing – Advanced temperature control system guarantees firm, leak-free seals.
Smart Control Interface – User-friendly touchscreen HMI with adjustable parameters and recipe storage.
Modular Design – Can be integrated with cup washing, nitrogen flushing, or secondary packaging systems.
| Item | Specification |
| Model | YJN-FS-12 |
| Production Capacity | 2,000 – 12,000 cups/hour |
| Filling Range | 30 ml – 250 ml per cup |
| Filling Accuracy | ±1.5 % |
| Applicable Products | Jelly, Pudding, Juice, Yogurt, Dessert, Honey |
| Cup Material | Plastic cup / Paper cup / Aluminum cup |
| Lid Material | Aluminum foil / Plastic film / Paper lid |
| Stations Available | 1 – 12 filling heads (customizable) |
| Sealing Type | Heat sealing with temperature control |
| Material of Construction | SUS304 / SUS316 Stainless Steel |
| Cleaning System | CIP automatic cleaning + UV sterilization (optional) |
| Filling System | Servo-driven piston or peristaltic pump |
| Air Supply | 0.6 – 0.8 MPa (clean, dry air) |
| Power Supply | 380 V / 50–60 Hz / 3 Phase |
| Power Consumption | 4.5 – 8 kW |
| Dimensions (L×W×H) | Approx. 3200 × 1000 × 1800 mm |
| Net Weight | 1300 kg |
| Certification | CE / ISO |
Jelly and pudding manufacturing plants for plastic cup or mini-cup packaging.
Juice and beverage factories producing fruit-based or yogurt jelly products.
Snack and dessert production lines requiring accurate portion control and hygienic filling.
OEM and contract packaging operations handling multiple cup sizes and flavors.
Filling Range: 30–250 ml (adjustable)
Production Capacity: 2,000 – 12,000 cups/hour
Cup Formats: Round, rectangular, or shaped jelly cups
Nozzle Quantity: Single, double, or multi-head filling stations
Optional Modules: Date printer, cup sterilizer, film punching, nitrogen injection, or automatic carton loader
Material Options: SUS304 / SUS316 for food-grade or acidic products
Electrical Standards: CE / UL / customized voltage and frequency for target markets
