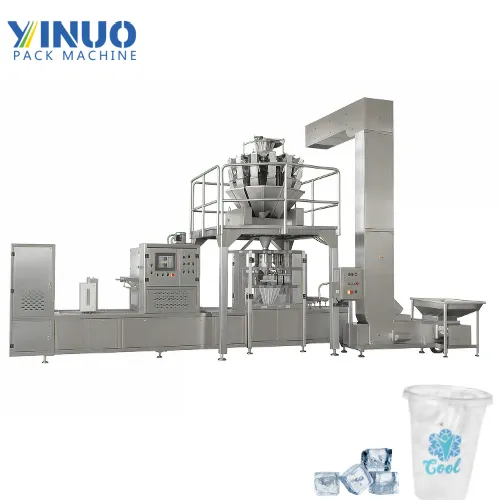

The Automatic Multihead Weigher Ice Cup Filling and Sealing Machine is specifically designed for packaging solid products that require high filling accuracy, such as ice cubes, French fries, nuts, and fruit pieces. Equipped with an advanced multihead weigher system, it ensures precise portioning, consistent filling, and reliable sealing. The machine integrates weighing, filling, and sealing into one streamlined process, greatly improving efficiency while reducing product waste.
Built with high-grade stainless steel, it fully complies with hygiene standards for food processing. Its user-friendly HMI control, customizable sealing molds, and compatibility with various cup sizes make it a versatile and reliable solution for modern food production lines.
High-precision multihead weigher for solid products like ice cubes, fries, nuts, and fruit chunks.
Automatic weighing, filling, and sealing in one integrated system.
Flexible cup size compatibility, with quick mold change options.
Durable stainless steel construction, easy to clean and maintain.
HMI touch screen interface for easy operation and parameter adjustment.
High-speed performance, supporting large-scale continuous production.
| Item | Description |
| Model | Anti-corrosive aluminum alloy and the transmission chain is made of stainless steel |
| Material | High-quality 304 stainless steel |
| Cup material | PP, PVC, PET, Aluminum |
| Cup length | 10—250mm（customizable） |
| Filling volume | Customizable |
| Filling accuracy | ≤ ±1% |
| Product capacity | 4000-8000 cups / hour（adjustable） |
| Air consumption | 1.5 m³/minute |
| Working pressure | 0.6~0.8Mpa |
| Power supply | 220/380V 50/60Hz, three phase ( customizable) |
| Power consumption | About 4.5 KW |
| Heat sealing temperature | Temperature 0-400 degree , adjustable for stable sealing performance |
| Overall dimension(mm) | 5150mm*850mm*1950mm |
| Machine weight(kg) | 2200kg |
Ice cube packaging lines for beverage and catering industries.
French fries cup packaging in fast food production.
Nut and dried fruit portion packaging for retail and supermarkets.
Fresh-cut fruit cup filling for convenience food markets.
Cup size and shape can be customized according to product needs.
Optional integration with UV sterilization, CIP cleaning systems, or automatic conveyors.
Adjustable sealing molds to fit different packaging designs.
Configurable weighing range to match product density and volume requirements.
Branding customization available, including logo and cup design support.
