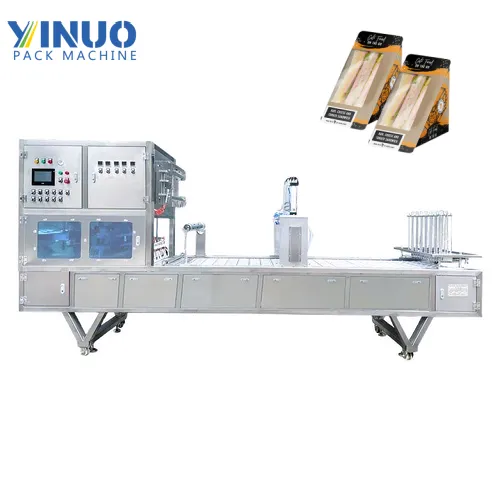

Our Automatic Sandwich Packing Machine is designed to deliver fast, reliable, and hygienic packaging for a wide range of sandwiches. Built with advanced sealing technology and a stainless-steel structure, this equipment ensures airtight sealing, extended shelf life, and consistent quality. It is ideal for commercial sandwich producers, bakeries, and food packaging facilities seeking high efficiency and reduced labor costs.
High-Speed Operation: Capable of sealing hundreds of sandwiches per hour, significantly improving productivity.
Hygienic Design: Made of food-grade stainless steel, easy to clean and maintain, ensuring compliance with food safety standards.
Precise Sealing: Uniform heating technology guarantees airtight seals to preserve freshness.
Versatile Packaging Options: Supports multiple sandwich sizes, trays, and film materials.
User-Friendly Interface: Touchscreen control system with adjustable parameters for easy operation.
Energy Efficient: Optimized heating and sealing mechanisms reduce energy consumption.
With a massive capacity range of 800 to 8,000 packs per hour, our machine grows with your business. Whether you are a local bakery or a national sandwich supplier, the customizable model selection ensures you never over-invest or under-produce.
Featuring a 0–300℃ adjustable high-precision thermal control system, we ensure a hermetic seal every time. Compatible with PET, PP, PE, and Aluminum laminated films, our technology locks in freshness and extends the shelf-life of your sandwiches and burgers.
Our PLC + Touchscreen interface allows a single operator to manage the entire line. The intuitive control system minimizes the learning curve and eliminates human error, significantly reducing your long-term labor overhead.
Constructed entirely from100% Food-Grade Stainless Steel, the machine is designed for easy wash-down and sanitization. The durable material resists corrosion and ensures your facility stays compliant with the highest global food safety standards.
| Parameter | Specification |
| Machine Name | Automatic Sandwich Sealing Machine |
| Sealing Type | Heat sealing |
| Capacity | 800–8000 packs/hour (customizable based on model) |
| Packaging Range | Suitable for sandwiches, burgers, bakery products |
| Tray Size | Customizable, standard range 120–200 mm |
| Film Material | PET, PP, PE, Aluminum laminated films |
| Sealing Temperature | 0–300℃ adjustable |
| Power Supply | 220V / 50Hz (option: 380V / 60Hz) |
| Power Consumption | 2.5–5.0 kW (depending on model) |
| Air Pressure | 0.6–0.8 MPa |
| Machine Material | Food-grade stainless steel |
| Control System | PLC + Touchscreen interface |
| Dimensions | 5200 × 800 × 1500 mm (customizable) |
| Weight | Approx. 1500–2000 kg (depending on model) |
Commercial Sandwich Production Lines
Bakeries & Cafés producing packaged sandwiches
Food Processing Factories requiring high-capacity sealing equipment
Convenience Food Packaging for supermarkets and retail chains
Meal Prep & Ready-to-Eat Food Industry
Sealing Molds can be customized for different sandwich sizes and packaging trays.
Packaging Materials: Compatible with PET, PP, laminated films, and eco-friendly sealing materials.
Production Capacity: Adjustable machine speed and sealing lanes according to output requirements.
Branding Options: Custom logo, labeling integration, and film design support.
Line Integration: Can be connected with automatic feeding, cutting, and labeling systems for a complete sandwich packaging solution.
Standard Tray Range: 120–200 mm.
Bespoke Engineering: We understand that every sandwich brand has a unique footprint. Our engineers can customize the tray mold and conveyor dimensions to fit your specific product shape—be it triangular sandwiches, round burgers, or rectangular bakery boxes.
Tailored Solutions & Global Support
Comprehensive Testing: We offer FAT (Factory Acceptance Testing) to ensure the machine meets your exact specs before shipping.
International Power Compatibility: Standard 220V/50Hz or optional 380V/60Hz to suit your regional industrial power grid.
Sustainability & Certification: Fully compliant with CE standards and built for energy efficiency (2.5–5.0 kW consumption).
Global After-Sales: Fabric samples and machine trials available within 7-10 days; remote technical support and spare parts availability guaranteed.
