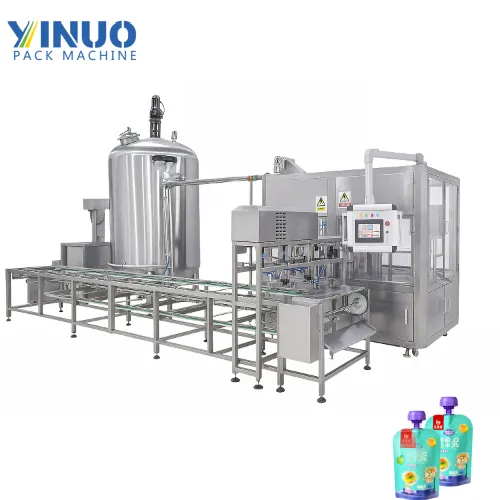

The Automatic Spout Pouch Filling and Capping Machine is specially designed for filling and sealing fruit puree, baby food, yogurt, juice, and other liquid or semi-liquid products. It integrates filling, capping, and sealing into one compact system, achieving high efficiency and hygiene standards.
Made of 304/316L stainless steel, the machine adopts servo-driven piston filling for accurate dosing and stable performance. Optional UV sterilization and CIP automatic cleaning systems ensure food safety and easy maintenance.
This machine is widely used in food and beverage industries, supporting customized pouch sizes, cap types, and filling volumes, fully compliant with CE and ISO certifications.
Smart Control System: Touch screen operation, PLC control, easy to adjust filling volume and speed.
Optional Sterilization: UV sterilization and CIP automatic cleaning available for food safety.
Flexible Application: Suitable for fruit puree, baby food, yogurt, juice, sauces, and liquid products.
Customizable Design: Supports different spout types, pouch sizes, and filling capacities.
| Item | Description |
| Model | YJN-FSC-6 |
| Material | High-quality 304 stainless steel |
| Filling volume | ( customizable) |
| Filling accuracy | ≤ ±1% |
| Product capacity | 1600 ~7000 pouches per hour ( customizable) |
| Air consumption | 1.5m³/minute |
| Working pressure | 0.6~0.8 Mpa |
| Power consumption | 5 KW |
| Main machine power | 220/380V 50/60Hz, three phase( customizable) |
| Overall dimension(mm) | 2450mm*1710mm*2200mm |
| Machine weight(kg) | 2000kg |
The Automatic Spout Pouch Filling and Capping Machine is widely used in the food, beverage, and baby food industries for packaging various liquid and semi-liquid products.
It’s ideal for:
Fruit puree, jam, and sauce packaging
Baby food and yogurt pouches
Juice, smoothie, and energy gel production
Condiment and paste filling (e.g., tomato paste, honey, salad dressing)
Dairy products and liquid snacks
This machine is suitable for medium to large-scale production lines, OEM manufacturers, and co-packing factories requiring high automation, hygiene, and precision.
Adjustable filling volume: 50–500 ml, 100–1000 ml, or tailored to your product.
Pouch compatibility: Custom shapes, sizes, and spout positions supported.
Cap options: Screw caps, flip tops, child-proof caps, and special designs.
