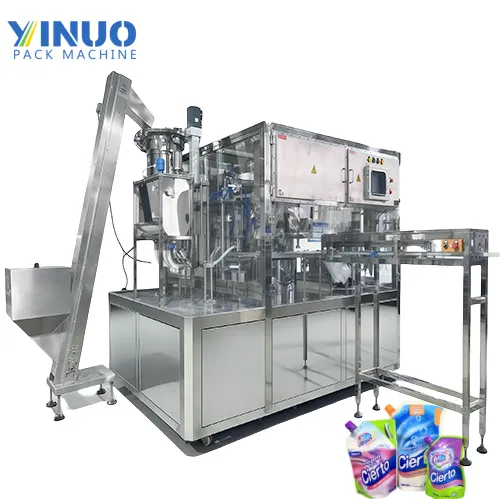

This machine is designed for filling and capping spout pouches with laundry detergent, fabric softener, and other liquid household products. It integrates filling, cap feeding, and capping in one compact system for efficient and clean operation.
Servo-driven accurate filling
Automatic cap sorting and capping
Supports various pouch sizes
Easy operation with touchscreen control
Hygienic stainless steel contact parts
| Parameter | Details |
| Filling Volume Range | 100–2000 mL (adjustable based on application) |
| Output Capacity | Up to 8000 pouches/hour (depending on pouch size and product viscosity) |
| Pouch Format | Stand-up spout pouches (various sizes and shapes supported) |
| Cap Type | Screw-type plastic cap (inner/outer cap optional) |
| Filling Accuracy | ±1% (product-dependent) |
| Power Requirement | 3-phase, 380V, 50Hz (customizable per country standard) |
| Compressed Air Supply | ≥ 0.6 MPa / 0.3 m³/min |
| Contact Material | SUS304 standard / SUS316L optional for corrosive products |
| Control System | Siemens/Mitsubishi PLC with HMI touchscreen |
| Machine Dimensions | Approx. 5000 mm (L) × 2600 mm (W) × 2100 mm (H) |
| Net Weight | Approx. 2000 kg |
Laundry detergent & softener packaging
Household cleaning liquids
Shampoo, shower gel, and cosmetic products
Customizable filling volume and speed
Compatible with different spout pouch sizes and shapes
Optional material contact parts (SUS304 or SUS316)
Layout design tailored to your production line
Optional integration with upstream mixing or downstream packing systems
