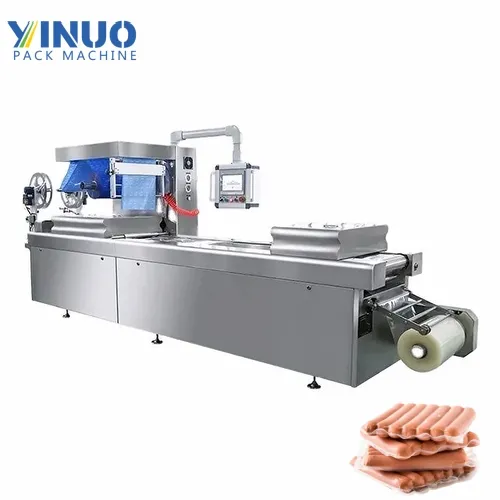

Our thermoforming vacuum packaging machine for sausages is designed for efficient, high-speed packaging of sausage products in vacuum-sealed trays. Utilizing bottom forming film and top sealing film, the machine automatically forms, fills, seals, cuts, and discharges the packages in a continuous process. It ensures extended shelf life, excellent sealing integrity, and a neat, professional appearance for your sausage products. Suitable for fresh, smoked, or cooked sausages in various sizes.
The Automatic Thermoforming Vacuum Packaging Machine for Sausages is the ideal choice for sausage manufacturers seeking to automate their packaging while ensuring product freshness and professional presentation. By integrating film forming, filling, vacuum sealing, and cutting into one continuous system, this machine delivers high output efficiency, consistent packaging quality, and extended product shelf life.
With speeds up to 10 cycles per minute and multi-cavity options, it significantly boosts your output compared to manual or pre-made bag methods. The machine supports optional gas flushing for MAP applications, making it suitable for a wide range of processed meats.
Compared with traditional vacuum bag packaging, thermoforming vacuum packaging offers better product protection, higher automation, and lower packaging cost per unit. This machine is ideal for meat processing plants, sausage manufacturers, and food factories seeking reliable and scalable sausage packaging solutions.
| Item | Specification |
| Film Width | 320–520 mm (customizable) |
| Forming Depth | Max. 100 mm |
| Cycle Speed | 6–10 cycles/min |
| Vacuum Level | ≤ 200 Pa |
| Power Supply | 380V / 50Hz / 3-Phase |
| Total Power | Approx. 12–18 kW (depends on config) |
| Compressed Air | 0.6–0.8 MPa, 0.6 m³/min |
| Cooling Water | Required, 5–10 L/min |
| Material | SUS304 stainless steel |
| Control System | PLC + Touch Screen (HMI) |
| Machine Dimensions | Customized based on layout |
| Optional Functions | MAP, automatic loading, labeling, coding |
Fresh sausages and smoked sausages
Hot dogs and frankfurters
Meat sticks and snack sausages
Cooked and processed meat products
Deli meats and chilled meat portions
It supports both standard vacuum packaging and optional MAP (Modified Atmosphere Packaging), suitable for products requiring extended shelf life and strong retail shelf presentation.
Sausage producers researching a sausage packaging machine are usually comparing more than one packaging method before deciding, because "sausage packaging machine" covers several distinct technologies — not just one. Here's how the main options compare, so you can confirm this is the right fit before requesting a quote:
Premade bag / vacuum pouch packing: lowest upfront equipment cost, suited to small-batch or startup operations. Limited shelf presentation and slower changeover between pack sizes. Best for internal transport packs or budget-sensitive retail lines.
Flow wrap (horizontal form-fill-seal): fast, economical, and film-efficient — a good fit for high-volume, lower-cost sausage runs where retail shelf appearance and extended shelf life are secondary to throughput and cost per pack.
Thermoforming vacuum tray packaging: forms a custom-depth tray around the sausage, removes oxygen to residual pressure ≤ 200 Pa, and seals with a barrier lidding film. This is the configuration most sausage producers move to when they need retail-ready shelf presentation, longer shelf life for wider distribution, and the flexibility to adjust film thickness, tray depth, and cavity layout as their SKU range grows. It also supports optional MAP (modified atmosphere packaging) for products that need extended chilled shelf life without full vacuum compression.
If your priority is retail shelf appeal, extended shelf life, and scalable output as you add SKUs, a thermoforming vacuum sausage packaging machine is generally the stronger long-term investment over flow wrap or premade bag methods, even though the upfront equipment cost is higher. If your production is smaller-batch or cost-per-pack is the dominant factor, a flow wrap or premade bag sausage packaging machine may be the more appropriate starting point — happy to tell you the thermoforming vacuum solution for sausages on that if you share your target output and distribution channel.
Configuration needs differ by sausage category, and matching the right mold, index length, and film spec to your specific product is what separates an accurate quote from a generic one:
Fresh and smoked sausages for retail: typically run wider cavity layouts and deeper trays to accommodate link thickness, paired with high-barrier lidding film for chilled-case shelf life. This is the most common configuration for meat processors selling into supermarket chains. Please see our broader Meat and Processed Protein Industry solutions.
Hot dogs and frankfurters: usually run shorter index lengths and multi-cavity molds for higher pack counts per cycle, since these products are typically sold in multi-packs rather than single links.
Meat sticks and snack sausages: smaller cavity sizing and faster cycle speeds are typical here, since these products are usually higher-volume, smaller-format SKUs distributed through snack and convenience channels. See our Snack Industry packaging solutions.
Cooked and processed meat products, deli meats, and chilled portions: often require MAP gas flushing rather than a full vacuum, since some cooked and sliced products are sensitive to compression — this is worth specifying at quote stage rather than defaulting to standard vacuum.
If your SKU range spans more than one of these categories, this sausage packaging machine can be configured with quick-change mold sets rather than requiring a separate machine per product type — tell us your full SKU list and we'll confirm whether one configuration covers your range or whether a multi-mold setup makes more sense.
| Item | Detail |
|---|---|
| Minimum Order Quantity (MOQ) | 1 set |
| Standard Lead Time | 30–45 days after deposit, depending on configuration |
| Warranty | 12 months / 1 year on main components, |
| Certifications | CE / ISO |
| After-Sales Support | Installation guidance, spare parts, and remote diagnostics — see Service |
In addition to single thermoforming vacuum packaging machines, we provide complet sausage packaging line.It helps meat processors reduce labor costs and material waste while complying with international food safety regulations like CE and FDA standards. By creating a tight, oxygen-free environment, your sausages stay fresher longer, reducing returns and increasing customer satisfaction. The Automatic Thermoforming Vacuum Packaging Machine for Sausages integrates effortlessly with upstream sausage production equipment such as stuffers, linkers, and slicers for a complete automated line.
Mold size and cavity layout
Film width and forming depth
MAP (modified atmosphere) function
Labeling, date coding, and automatic loading
Multi-language interface and remote diagnostics
Filling Volume:Customizable molds with forming areas ranging from 200×300 mm to 450×350 mm or larger; adjustable advance (index) length 150-500 mm per cycle to accommodate various sausage lengths and quantities per pack.
Film thickness: Bottom thermoforming film 0.15–0.30 mm (150–300 microns) for structural integrity; Top lidding film 0.05–0.12 mm (50–120 microns) for excellent barrier properties
Vacuum degree: High-performance vacuum pump system achieving residual pressure of ≤ 200 Pa (equivalent to deep vacuum of approximately -0.0998 MPa or 99.8% air removal).
