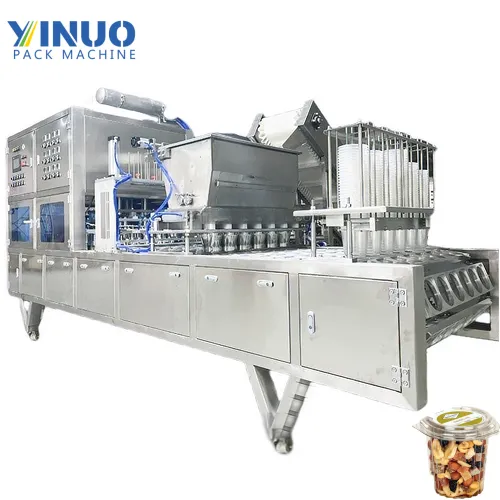

If you are looking for filling and sealing solutions for pre-formed cups, tubs, or trays, Yijianuo Machinery offers a wide range of filling, sealing, and capping options, ideal for products such as nuts, snacks, and cereals. Yijianuo Machinery's cup filling and sealing machine solutions offer various capacity, footprint, and configuration options.
Precise Filling: Volumetric or weight-based options.
Sealing Options: Heat and vacuum sealing available.
Versatile Packaging: Supports PE, PP, PET, and aluminum foil.
Cup Washing: Automatic cleaning system for hygiene.
Easy Control: PLC and touchscreen interface.
Durable: Stainless steel construction for long life.
Equipped with either a Volumetric or Weight-based filling system, our machine ensures every cup from 50g to 500g is filled with extreme accuracy. By minimizing spillage and overfill, you significantly reduce raw material waste and increase your overall profit margins.
Engineered for high-volume industrial environments, this machine achieves a production speed of up to 200 cups/min. Its adjustable speed allows you to synchronize perfectly with your upstream processing and downstream cartoning, ensuring an uninterrupted workflow 24/7.
Our professional Heat Sealing System (with optional Vacuum Sealing) provides a hermetic, tamper-evident seal in just 1-2 seconds. Compatible with PE, PP, PET, and Aluminum foil, it creates a robust barrier that extends shelf life and maintains product flavor integrity from factory to shelf.
The entire frame and all contact parts are constructed from Food-Grade 304 Stainless Steel. This rust-proof design not only simplifies the Clean-in-Place (CIP) process but also ensures the machine withstands corrosive food acids and intensive daily cleaning protocols.
| Item | Technical Specifications |
| Production Speed | Up to 200 cups/min (adjustable) |
| Filling Volume | 50 g - 500 g (customizable) |
| Filling Method | Volumetric or weight-based filling system |
| Sealing System | Heat sealing (can be equipped with a vacuum sealing option) |
| Sealing Time | 1-2 seconds per cup (adjustable) |
| Compatible Packaging Materials | PE, PP, PET, Aluminum foil (compatible with various types of bags or cups) |
| Machine Dimensions | Length: 3500 mm, Width: 1200 mm, Height: 1800 mm |
| Power Supply | 220V/380V (customizable) |
| Power | 4-6 kW |
| Control System | PLC control with touchscreen interface |
| Safety Features | Emergency stop button, overload protection |
| Materials Used | Stainless steel (304), food-grade materials |
The Mixed Nuts Filling and Sealing Machine is widely used in the following industries:
Snack food manufacturing
Nut processing plants
Packaging companies
Retail and foodservice packaging
Custom Packaging: Compatible with various types of bags, pouches, or cups, depending on client needs.
Weight-based and Volume-based Filling: Offers both volume and weight filling options for accurate product packaging.
Filling Volume: Customizable to meet specific product weight requirements (from 50 g to 500 g or more).
Packaging Type: Compatible with various bag or cup sizes and materials.
Speed Adjustment: Variable filling speed to align with the production line's capacity.
Sealing Options: Options for standard heat sealing or vacuum sealing for longer shelf life.
Control System: Customizable software or integration with existing factory systems for seamless operation.
Ready to optimize your nut packaging process? Contact us today for more information about the Mixed Nuts Filling and Sealing Machine or to get a customized quote based on your needs.
