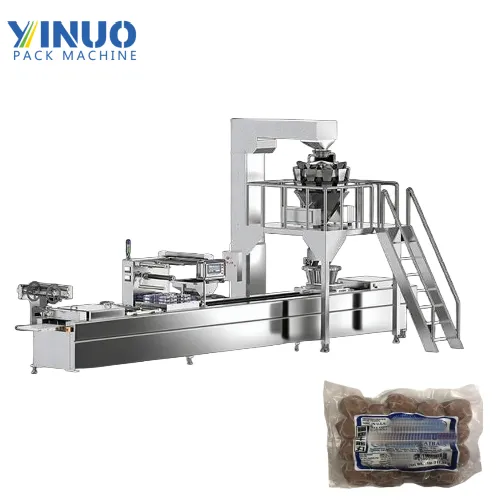

The multihead weigher thermoforming fill and seal packaging machine integrates advanced weighing, forming, filling, and sealing functions into one automated line. Using stretch film technology, it forms trays or pouches directly from film roll, ensuring strong sealing, extended shelf life, and attractive product presentation. With multihead weighers, the system guarantees precise portioning, making it ideal for a wide range of products requiring accuracy, efficiency, and hygiene.
Integrated Weighing & Packaging: Multihead weigher ensures precise portion control.
Thermoforming Technology: Forms trays/pouches from stretch film rolls.
Flexible Packaging Styles: Supports vacuum, MAP (Modified Atmosphere Packaging), and standard sealing.
Hygienic Construction: Made of 304/316 stainless steel, easy to clean, compliant with food standards.
High Efficiency: Continuous operation with reduced film waste and low labor requirements.
Smart Control System: PLC + touchscreen interface, recipe storage, and error alarms.
| Item | Specification |
| Cutting Frequency (Times/min) | 6~8 times |
| Forming Size And Depth (mm) | 160×60×30（Customized） |
| Travel Range (mm) | 40-180 (Can be lengthened to 180mm as user's requirements) |
| Air Pressure (Mpa) | 0.6~0.8 |
| Air Supply | ≥1.5 m3/min |
| Total Power | 380V 50Hz 7.5 kw |
| Main Motor Power (kw) | 2.2 |
| PVC Sheet (mm) | 0.15-0.5×420 |
| PTP Aluminum Foil (mm) | 0.02-0.035×420 |
| Dialysis Paper (mm) | 50-100g×420 |
| Mould Cooling | Tap Water Or Circulating Water |
| Overall Dimensions (mm) | 6000×1050×2100 (L×W×H) |
| Weight (kg) | 2000 |
Food Industry: Meat, seafood, cheese, ready-to-eat meals, snacks, nuts, frozen food.
Medical & Pharmaceutical: Sterile consumables, medical irrigation solutions, small-pack disinfectant liquids (with tray/pouch forming).
Industrial Products: Hardware, electronic components, chemical goods needing sealed packaging.
Retail Packaging: Consumer-ready packs with extended shelf life and attractive appearance.
Tray/pouch size, depth, and cavity layout customization.
Multihead weigher configuration for different product weights.
Optional vacuum, gas flushing, or MAP systems.
Integration with upstream processing and downstream cartoning/palletizing lines.
OEM/ODM services available with branding and tailored engineering design.
