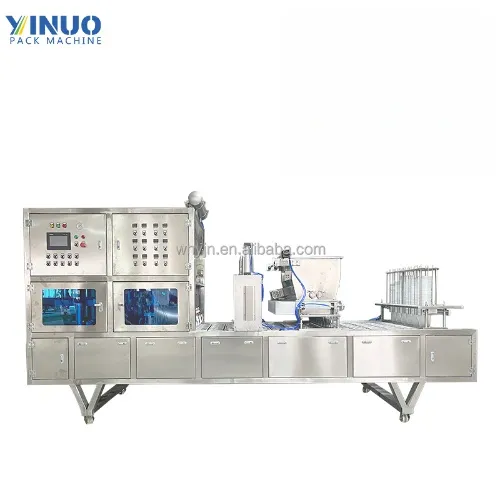

The Automatic Ice Cup Filling and Sealing Machine is a fully automatic solution developed for ice cup packaging and cold product filling applications. As part of our Automatic Filling and Sealing Machines portfolio, this equipment is designed for the packaging of frozen beverages, slush products, ice jelly, and other chilled desserts in plastic or PP cups.
The machine integrates cup dropping, precise filling, film or lid sealing, and finished cup discharge into one streamlined process, significantly improving production efficiency and hygiene control in ice cup packaging lines. Built with food-grade stainless steel and a PLC-controlled system, it delivers stable operation, accurate filling volume, and consistent sealing quality for industrial ice cup production.
Suitable for various cup sizes and shapes, the machine can be configured to support different ice cup packaging requirements, making it ideal for dairy factories, frozen drink producers, dessert manufacturers, and other cold-chain food processing facilities.
Fully automatic ice cup filling and sealing process with integrated cup handling
Precise filling system for accurate portion control of frozen and chilled products
Compatible with PP, PET, and PS ice cups made of food-grade materials
Stable high-speed operation with consistent heat sealing quality
Food-grade stainless steel construction for hygiene and easy cleaning
PLC-controlled touchscreen interface for simple operation and monitoring
Adjustable parameters to accommodate different cup sizes and filling volumes
Integrated film feeding and heat-sealing system to reduce leakage risks
Compact machine layout optimized for space-saving production lines
| Technical Specification | Details |
|---|---|
| Model | YJN-FS110-C6 |
| Filling Method | Measuring cup filling |
| Filling Volume Range | Adjustable, 50ml – 500ml |
| Cup Types | PP, PET, PS ice cups |
| Sealing Film | Heat-sealable plastic film |
| Sealing Method | Heat sealing with temperature control |
| Filling Speed | Up to 300 cups/min |
| Power Supply | 220V/380V, 50/60Hz (customizable) |
| Machine Material | Food-grade stainless steel (SUS304) |
| Control System | PLC with touchscreen interface |
| Air Pressure | 0.6 – 0.8 MPa |
| Machine Dimensions | 5000 × 1800 × 2100 mm |
| Weight | 2000 kg |
The Automatic Ice Cup Filling and Sealing Machine is suitable for automatic ice cup packaging across the beverage and chilled food industries. It supports a wide range of food-grade cup materials and is commonly used in:
Ice cup packaging lines for frozen beverage production
Dairy factories processing chilled and frozen dessert products
Frozen drink and slush manufacturing facilities
Food processing plants requiring hygienic ice cup sealing
Catering chains and retail suppliers producing packaged ice cups
The machine supports both small-batch production and large-scale industrial manufacturing, ensuring efficient, stable, and hygienic ice cup filling and sealing operations.
To meet different ice cup packaging requirements, the machine offers flexible configuration options within standard production parameters:
Adjustable filling volume and filling speed for diverse production needs
Compatibility with various cup sizes, shapes, and materials including PP, PET, and PS
Support for different sealing film options, including printed and plain films
Customizable PLC control interface for user-friendly operation
Optional integration with automatic cup feeding, labeling, and quality inspection systems
Production configurations tailored to specific workflows and product requirements
Looking for a reliable Automatic Ice Cup Filling and Sealing Machine for frozen beverage or ice cup packaging?
Request technical details, confirm cup compatibility, or receive a customized production configuration proposal for your ice cup filling and sealing requirements. Our team will help you evaluate the most suitable setup for your factory or OEM production line.
