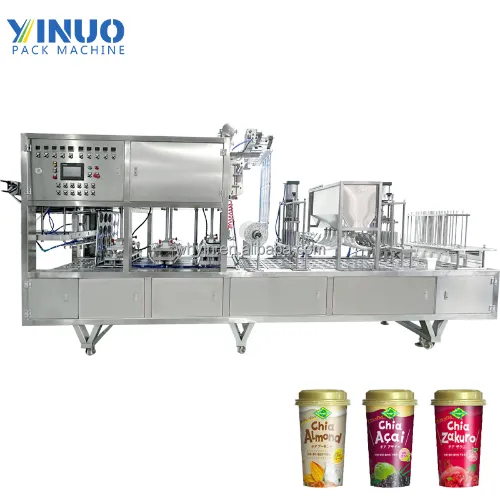

The Automatic Juice Cup Filling and Sealing Machine is designed for efficient, hygienic, and high-speed packaging of fruit juice, tea, and beverage products in pre-formed cups. Our automatic continuous sealing machine integrates cup dropping, juice filling, film sealing, date coding, and cup ejection into a single automated workflow.
Designed for Food Safety and Easy Maintenance
The equipment structure is optimized for beverage production environments, with food-grade materials and an easy-clean design. This helps producers comply with international food hygiene standards and simplifies routine maintenance, minimizing downtime during continuous production.
An intuitive control interface allows operators to quickly adjust parameters such as filling volume, sealing temperature, and running speed, improving operational efficiency on the factory floor.
Fully automatic operation: cup feeding, filling, sealing, and discharge
Compatible with PP, PET, and paper cups
Optional UV sterilization and nitrogen flushing
Suitable for hot and cold filling processes
Integration with inkjet printer or labeler
| Item | Description |
| Model | anti-corrosive aluminum alloy and the transmission chain is made of stainless steel |
| Material | high-quality 304 stainless steel |
| Cup material | PP, PVC, Aluminum, Paper cup |
| Cup diameter | Φ30—φ100（customizable） |
| Cup length | 50—250mm（customizable） |
| Filling volume | 250 ml |
| Filling accuracy | 99% |
| Product capacity | Max 8000 cups / hour（adjustable） |
| Air consumption | 1.5 m³/minutes |
| Working pressure | 0.6~0.8Mpa |
| Motor power | 220 - 240 Volt , 60Hertz , three phase( customized according to your local voltage) |
| Heat sealing temperature | temperature 0-400 degree , adjustablefor stable sealing performance |
| Overall dimension(mm) | 5810mm*1288mm*1950mm |
| Machine weight(kg) | 2200kg |
Fruit juice cup packaging (orange, mango, mixed fruit, etc.)
Iced tea and flavored drinks
Yogurt drinks, aloe vera juice, herbal beverages
Cafeterias, juice factories, dairy plants, beverage processing lines
Adjustable filling volume & cup diameter
Dual filling heads for juice and pulp
Integration with sterilizers, date coders, and capping units
Suitable for hot fill, cold fill, or ambient temperature
Customizable for different film types and sealing shapes
