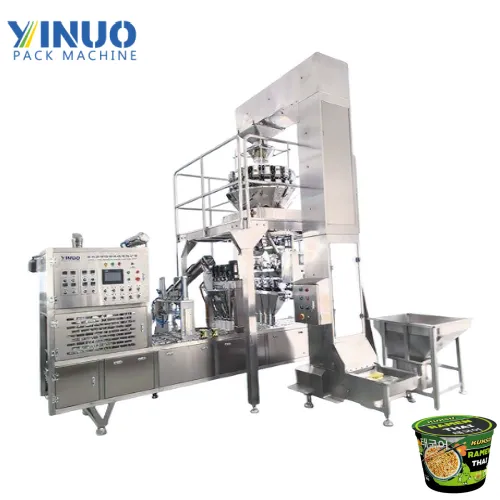

The Automatic Pasta Cup Filling and Sealing Machine is designed for efficient and hygienic packaging of instant pasta or ready-to-eat noodle cups. It integrates automatic cup dropping, pasta dosing, sauce filling (optional), film sealing, and cup discharge into a streamlined system.
Constructed with food-grade stainless steel and operated via a PLC control system, the machine ensures precise filling, strong sealing, and consistent performance—ideal for food manufacturers aiming to optimize productivity and maintain food safety standards.
Fully automatic cup filling and sealing process
Compatible with PP, PET, and paper cups
Optional sauce filling, nitrogen flushing, or cup lidding
High-speed servo-driven control for precision
| Item | Description |
| Model | YJN-GF-4 |
| Material | High-quality 304 stainless steel |
| Filling volume | 10~1000g（customizable） |
| Filling accuracy | ≤ ±1g |
| Product capacity | 1600~2000 cups / hour（adjustable） |
| Air consumption | 1.5 m³/minute |
| Working pressure | 0.6~0.8Mpa |
| Main machine power | 220V 60 Hz AC 3 Phase(customized according to local voltage) |
| Sealing machine overall dimension(mm) | 4750mm*850mm*1950mm |
| Machine weight (kg) | 2000kg |
This machine is ideal for packaging instant pasta, macaroni, and ready-to-eat meal cups. It is widely used in food processing factories, central kitchens, convenience food manufacturers, and meal prep production lines requiring efficient and hygienic cup packaging solutions.
Customizable cup sizes and materials (PP, PET, paper)
Optional dual filling for pasta and sauce
Roll film or pre-cut lid sealing options
Date coding and labeling integration
Optional modules: nitrogen flushing, sterilization, tray loading
Compatible with upstream and downstream equipment
Multi-language PLC interface and recipe control
