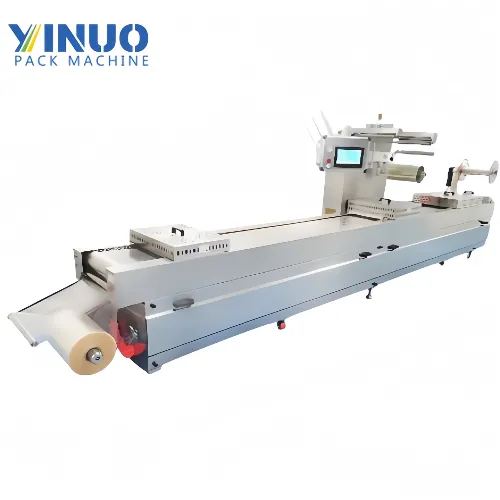

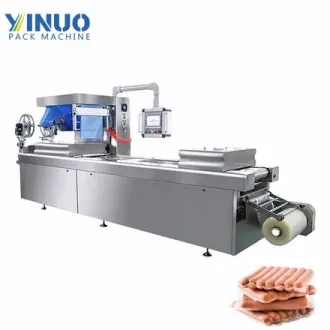

Thermoforming Packaging Machines
The Thermoforming Packaging Machine offers a fully automatic solution for forming, filling, sealing, and cutting flexible or rigid film. It is ideal for vacuum, MAP, or skin packaging of food, medical, and industrial products. Built with stainless steel and controlled by PLC with a touchscreen, it ensures high efficiency, hygiene, and easy operation. Custom mold sizes and optional functions are available.
Fully automatic forming, filling, sealing, and cutting
Compatible with vacuum, MAP, and skin packaging
PLC control with intuitive touchscreen interface
Hygienic stainless steel construction
Customizable mold sizes and packaging formats
Optional functions: date coding, easy-tear, film printing registration
Suitable for flexible and rigid film
| Item | Specification |
|---|---|
| Machine Model | Customizable (based on client requirements) |
| Forming Film Width | 320–520 mm |
| Forming Depth | Up to 120 mm (customizable) |
| Film Material | Rigid or flexible film (PET, PE, PS, etc.) |
| Packaging Type | Vacuum / MAP / Skin packaging |
| Cycle Speed | 6–12 cycles/min (depending on product) |
| Control System | PLC with touchscreen HMI |
| Power Supply | 380V / 50Hz / 3Phase (customizable) |
| Total Power | Approx. 12–20 kW (depending on configuration) |
| Air Pressure Requirement | ≥0.6 MPa |
| Cooling Water Requirement | ≥0.1 MPa, 60L/h |
| Machine Dimensions | Approx. 5000–9000 mm × 1000 mm × 2000 mm |
| Machine Weight | Approx. 2000–4000 kg |
Fresh and processed meat packaging
Seafood and fish products
Dairy products (cheese, butter, yogurt cups)
Ready meals and convenience food
Bakery and confectionery items
Medical instruments and sterile supplies
Industrial components requiring vacuum sealing
Mold size and layout tailored to product dimensions
Flexible choice of packaging formats: vacuum, MAP, skin
Custom film types and thickness compatibility
Optional add-ons: labeler, printer, easy-peel cuts, hole punch
Integration with upstream/downstream automation systems
Multi-language interface and control system adaptation
