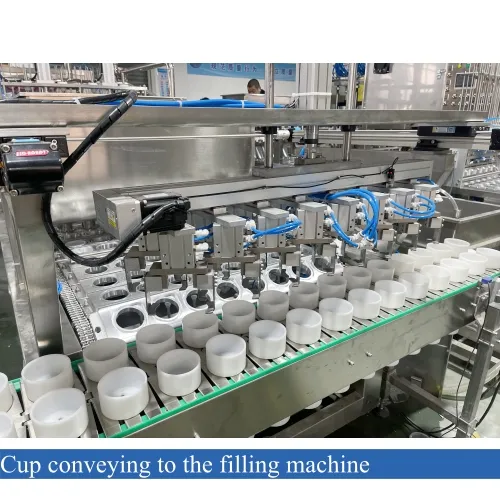

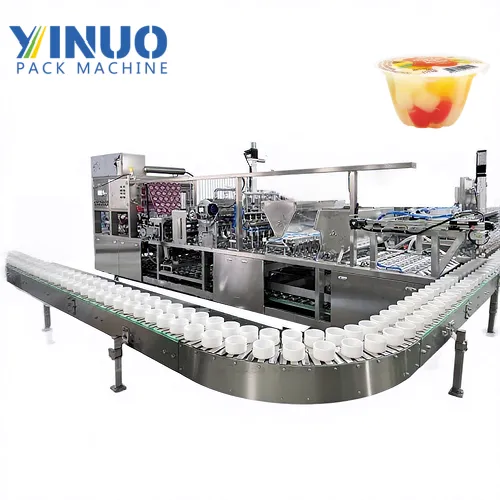

The Fruit Pulp Jelly Filling and Sealing Machine is designed for automatic packaging of jelly products and cup beverages containing fruit pulp. The system integrates automatic cup feeding, quantitative filling, film sealing and product output into one compact production line.
The machine is capable of handling liquid and semi-liquid products with fruit particles, ensuring accurate filling and hygienic sealing. Its advanced control system allows stable operation and consistent product quality.
Yinuo Pack presents the Automatic Fruit Pulp Jelly Filling and Sealing Machine, a fully integrated high-speed solution designed specifically for cup beverage packaging containing fruit pulp, jelly desserts, and viscous liquids with particles. As a professional fruit pulp jelly filling machine manufacturer, we engineered this fruit pulp jelly cup filling machine to deliver precise filling, reliable sealing, and consistent output for modern food and beverage production lines.
This cup beverage filling and sealing machine combines automatic cup dropping, quantitative fruit pulp filling, film feeding or pre-cut lid placement, heat sealing, date coding, and product discharge into one compact, high-performance line. The system handles liquid and semi-liquid products with fruit particles smoothly, preventing clogging while maintaining filling accuracy up to 99%. Whether you produce fruit pulp jelly, yogurt drinks, or juice with pulp, this high speed jelly cup filling sealing machine ensures hygienic, stable, and cost-effective packaging.
| Item | Description |
| Model | anti-corrosive aluminum alloy and the transmission chain is made of stainless steel |
| Material | high-quality 304 stainless steel |
| Cup material | PP, PVC, Aluminum, Paper cup |
| Cup diameter | Φ30—φ100（customizable） |
| Cup length | 50—250mm（customizable） |
| Filling volume | 30-100ml |
| Filling accuracy | 99% |
| Product capacity | Max 13000 cups / hour（adjustable） |
| Air consumption | 3 m³/minutes |
| Working pressure | 0.6~0.8Mpa |
| Motor power | 220V/380V 50/60Hz, three phase( customized according to your local voltage) |
| Heat sealing temperature | temperature 0-400 degree , adjustable for stable sealing performance |
| Overall dimension(mm) | 7000mm*1288mm*1950mm |
| Machine weight(kg) | 3000kg |
Not every cup beverage needs particulate-handling equipment, and choosing the wrong configuration is the most common costly mistake in this category. Use this comparison to confirm you're looking at the right machine before requesting a quote.
Fruit Pulp Jelly Filling and Sealing Machine (this page) — for cup beverages carrying visible particles: fruit chunks, aloe vera cubes, nata de coco, pulp fragments suspended in liquid or semi-liquid base. Uses dual-stage dosing to keep particle distribution consistent and an anti-clog valve sized to your pulp. Filling accuracy holds at 99% even under particle load. Choose this if your product would clog or unevenly fill in a standard single-phase cup filler.
Standard Jelly Cup Filling and Sealing Machine — for solid or semi-solid desserts with no suspended particles: plain jelly, pudding, flan, honey. Single-phase servo dosing, higher rated output (up to 12,000 cups/hour) because there's no particle-clog risk to manage. Choose this if your product is uniform in texture and doesn't require a particle-clearing dosing stage — it's the more cost-effective line for that use case.
Yogurt Filling and Sealing Machine — for smooth, pourable dairy products without solid inclusions, where dosing speed and hygienic CIP cleaning matter more than particle handling. Choose this if your base product is plain yogurt or a dairy beverage without fruit pieces.
If your product sits between categories — for example, a dairy drink with occasional fruit inclusions, or a beverage where particle size varies by batch — tell us the pulp size range and ratio when you request a quote, and we'll confirm which dosing configuration actually fits, rather than defaulting you to the wrong machine.
Fruit pulp juice with visible chunks (mango, peach, mixed fruit): needs the widest dosing valve bore and dual-stage fill to prevent chunks from settling unevenly between cups. Typical fill volume 30–100ml, mid-range output.
Aloe vera drinks, nata de coco, and grass jelly beverages: smaller, more uniform particle size than fruit chunks, allowing tighter valve tolerances and higher sustainable output within the same platform.
Dairy-based beverages with fruit inclusions (fruit yogurt drinks): requires contact parts and seals rated for higher-acid, dairy-compatible cleaning cycles — CIP cleaning is worth specifying at quote stage for this category.
Bubble tea and pulp-forward beverage bases: often run larger particle sizes (tapioca-adjacent) and benefit from a wider valve bore plus manual valve-clearing access built into the dosing head for faster changeover between flavors.
Ready-to-drink dessert cups combining liquid and soft solids: closest to standard jelly cup filling in dosing behavior, but still benefits from the anti-clog valve if any solid component is unevenly sized.
Match your product to the closest category above, then confirm your target output per shift — that combination determines whether a single-head pilot configuration or a multi-head production line is the right starting point for your fruit pulp jelly filling and sealing machine.
This fruit pulp jelly filling and sealing machine is used across:
Fruit pulp drinks and juice with visible fruit chunks (mango, peach, orange, mixed fruit)
Aloe vera drinks, nata de coco, and grass jelly beverages with particulates
Yogurt drinks and dairy-based beverages with fruit inclusions
Bubble tea bases and pulp-forward beverage lines
Ready-to-drink dessert cups combining liquid and soft solid components
If your product is a solid jelly, pudding, or flavored dessert without suspended particles, our standard jelly cup filling and sealing machine is the more appropriate — and more cost-effective — line, since it's optimized for consistent single-phase dosing rather than particle handling.
Most cup beverage buyers researching a fruit pulp jelly filling and sealing machine have already been burned by equipment that wasn't designed for particles: uneven pulp distribution between cups, nozzle blockages mid-run, or seal contamination from pulp caught in the sealing zone. This machine addresses each failure point directly:

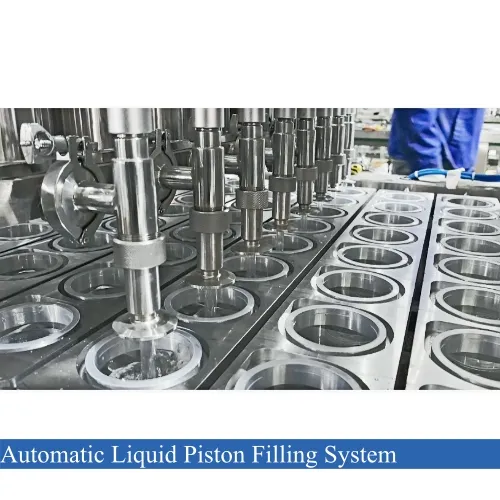

Wide-bore, anti-clog dosing valves sized for pulp and small particulates, not just free-flowing liquid
Adjustable dual-stage filling (base liquid plus pulp/particle dosing) to keep particle distribution consistent cup to cup

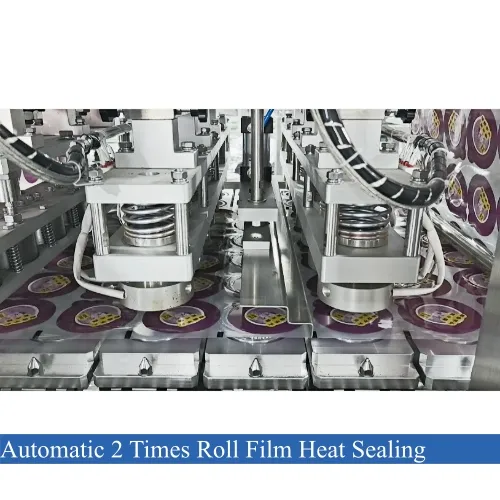

A sealing zone designed to keep pulp fragments clear of the heat-seal area, preventing weak or leaking seals
Filling accuracy maintained at 99% even with particle-laden product, versus the accuracy drop typical of standard cup fillers under the same load
If your product is closer to a solid dessert — pure jelly, pudding, or flan without suspended particles — a straight cup filling and sealing machine (without the particulate-handling dosing stage) is usually the more cost-effective choice; this fruit pulp cup filling machine is purpose-built for beverages and semi-liquids that carry visible solids.
Because pulp size, beverage viscosity, and cup format vary widely by market and product, this fruit pulp jelly filling and sealing machine is available with:
Cup size and shape adjustment to match your existing packaging supply chain
Dosing valve sizing tailored to your specific pulp or particle size
Filling volume and speed adjustment for different SKUs on the same line
Sealing film and lid material compatibility (foil, film, or paper lid)
Conveyor layout adapted to your factory floor and available space
Integration with upstream mixing/blending or downstream date coding, cartoning, and case packing equipment
With years of expertise in automated packaging solutions, Yinuo Pack stands out as a reliable fruit pulp jelly filling machine manufacturer by offering:
Full in-house design and testing for maximum reliability
Flexible customization (cup size, filling volume, sealing type, conveyor layout, and full production line integration)
Competitive factory-direct pricing with fast global delivery
Comprehensive after-sales support, including installation guidance and spare parts
Whether you need a standard automatic fruit pulp jelly filling and sealing machine or a fully tailored custom fruit pulp beverage filling machine, Yinuo Pack delivers efficiency, hygiene, and long-term value.
Daily cleaning of filling nozzles and sealing heads with food-grade sanitizers
Regular lubrication of transmission parts and inspection of pneumatic valves
Monitor heat sealing temperature to ensure consistent lid adhesion
Keep the machine in a dry, ventilated area when not in use
Request a quote today for the Automatic Fruit Pulp Jelly Filling and Sealing Machine, fruit pulp jelly cup filling machine, or other high speed jelly cup filling sealing machine options. Our experts will recommend the perfect cup beverage filling and sealing machine solution for your facility.
